Solar Simulators

15200_w_Simulator

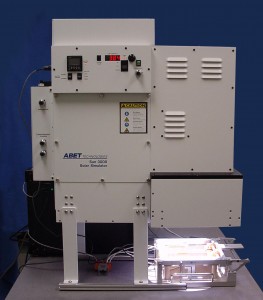

Model #11018 Solar Simulator and #15200 Test Station
Abet Technologies offer a wide range of ASTM, IEC, and JIS standards compliant solar simulators ranging from 150W to 3kW with one sun or greater illuminated field sizes from 50 x 50 mm to 35 x 35 cm. The direction of illumination, traditional down pointing, horizontal, or vertical up pointing can be specified at the time of ordering.

All Abet solar simulators are completely self-contained. The source, arc lamp power supply, control electronics, shutter, lamp, and optical compartment are housed in a single compact enclosure. A digital shutter timer allows internal or external control of the shutter. HEPA filtering assures a clean supply of cooling air into the optical compartment.

11000_Sun_2000_SS
Model #11000 2x2 inch Solar Simulator

A number of spectral matching filters are available to add to all Abet full spectrum solar simulators. Full spectrum systems normally ship with a borosilicate condenser lens to minimize UV exposure. If UV output is required fused silica condensers can be substituted.

Class AAA solar simulators are provided with certification of standards compliance for spectral match, temporal stability, and spatial uniformity.
